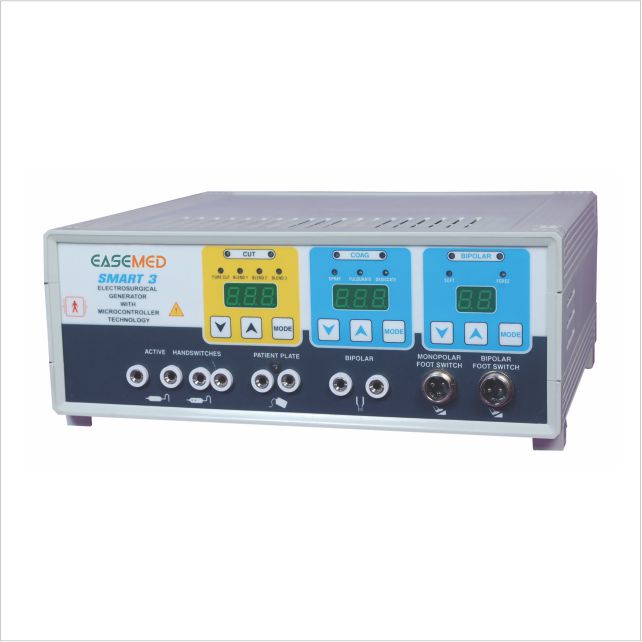

Electro Surgical Unit-Smart 3 is a new generation electrosurgical unit integrated with microprocessor controls. The equipment ensures complete safety to the surgeon while operating. Combines the excellent performance of monopolar (cut & coag) and bipolar modes, this ESU is specially developed for specific surgeries where high precision and reliability is paramount. There is an added feature in it that is responsible for a good hemostasis effect with minimum cutting effect.
Features :
- Automatically stops energy delivery as soon as the seal the cycle is complete
- Minimum cutting effect
- Feedback-controlled response system
- Bipolar output with a nonsparking characteristic
- Prompt start even in irrigated procedures
- Spray coagulation
- Pure and smooth cut
- Provides good hemostasis effect
Applications :
- Microsurgery
- Neurosurgery
- Laparoscopy
Technical Specifications :
Cut :
| Mode | Programs | Power | Load | Operating Frequency |
| Pure | 99 | 300 W | 500 Ω | 480 kHz |
| Blend 1 | 99 | 250 W | 500 Ω | 480 kHz |
| Blend 2 | 99 | 200 W | 500 Ω | 480 kHz |
| Blend 3 | 99 | 150 W | 500 Ω | 480 kHz |
Coag :
| Mode | Programs | Power | Load | Operating Frequency |
| Spray | 99 | 120 W | 500 Ω | 480 kHz |
| Fulgurate | 99 | 150 W | 500 Ω | 480 kHz |
| Dessicate | 99 | 150 W | 500 Ω | 480 kHz |
Bipolar :
| Mode | Programs | Power | Load | Operating Frequency |
| Soft | 99 | 80 W | 100 Ω | 480 kHz |
| Force | 99 | 80 W | 100 Ω | 480 kHz |
